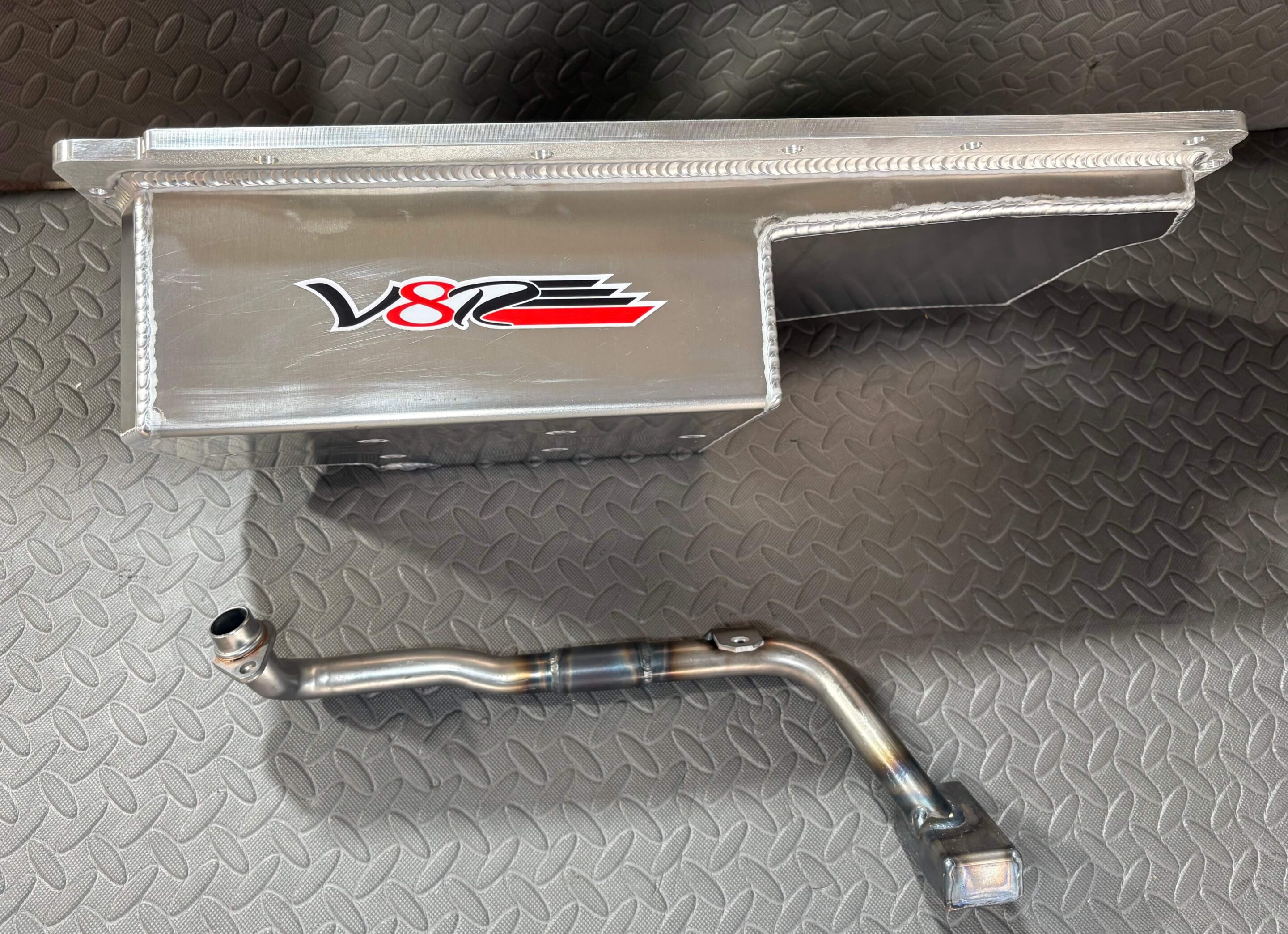

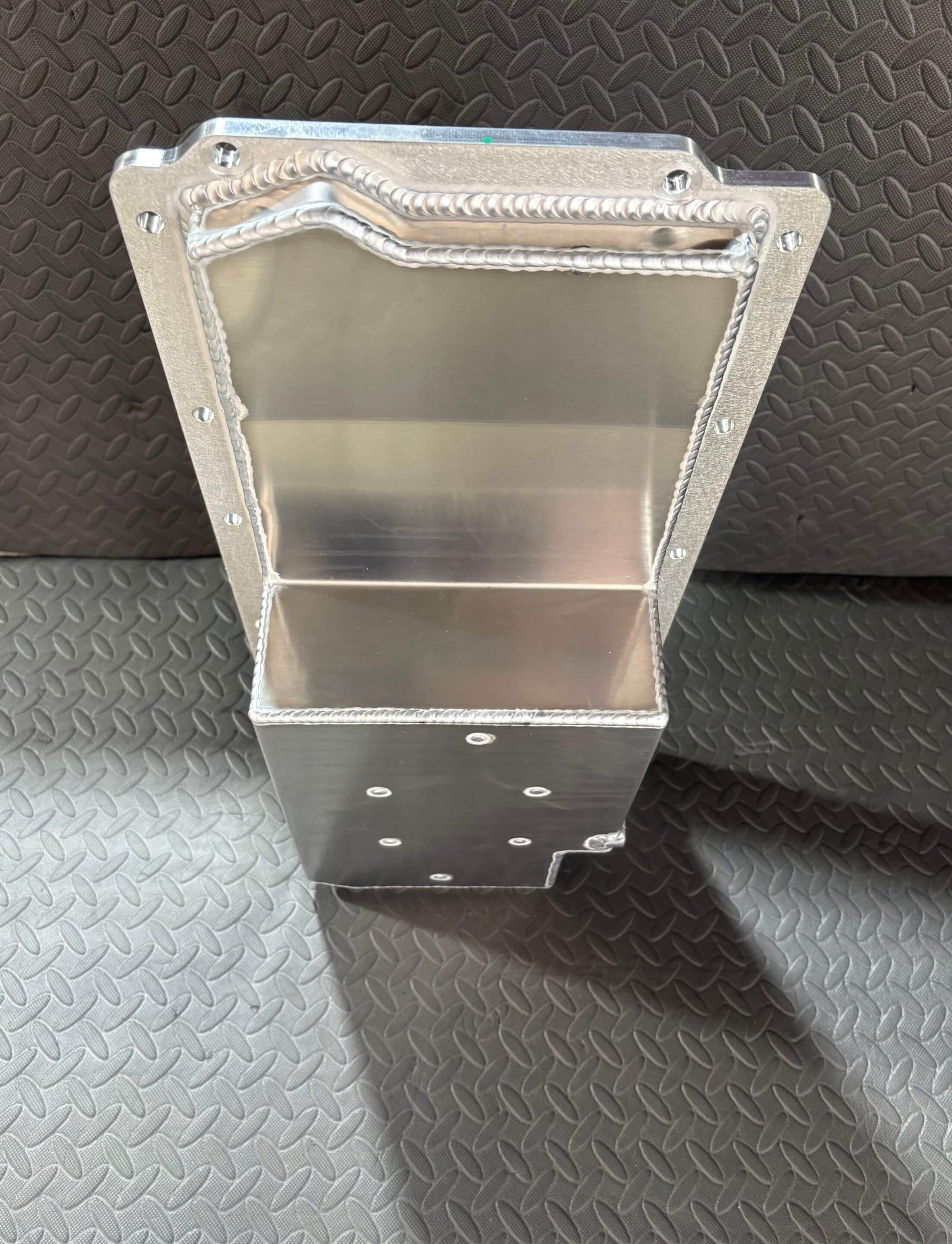

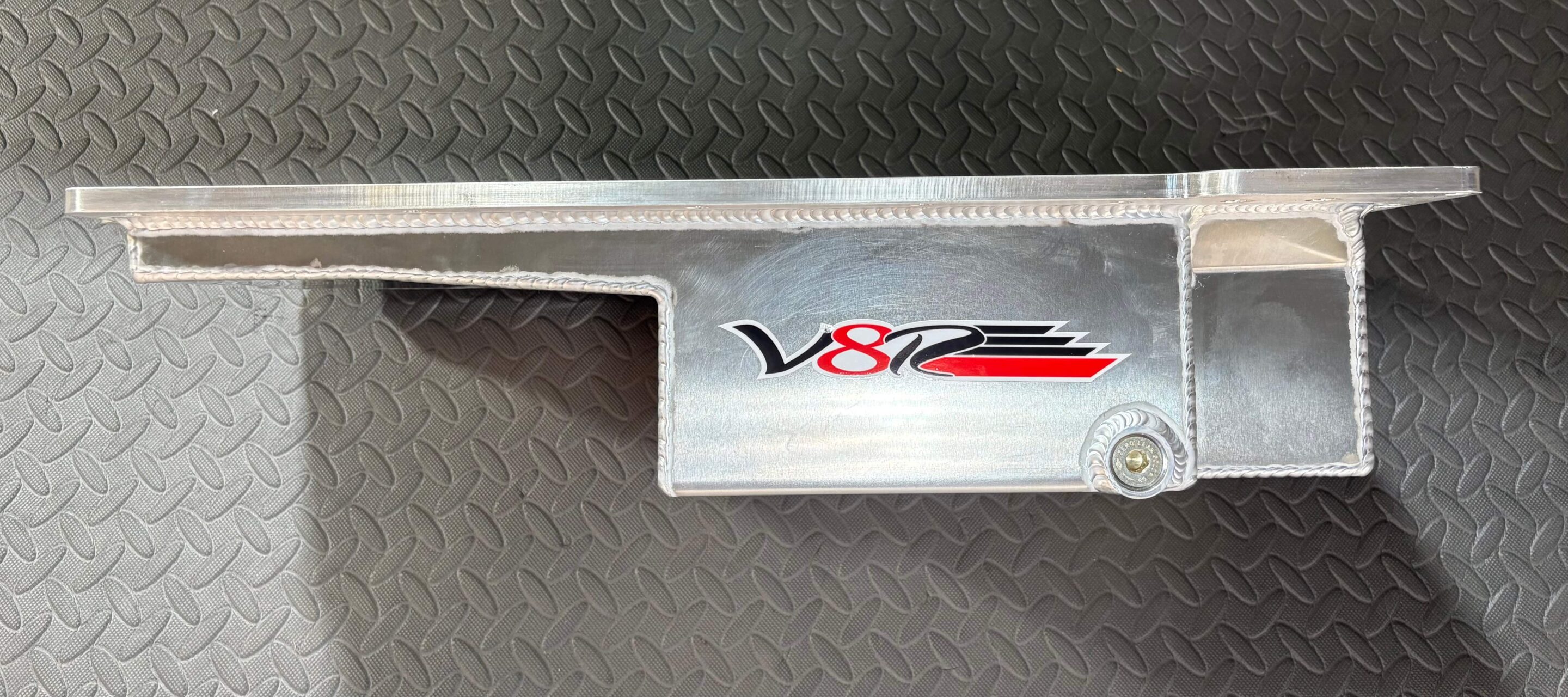

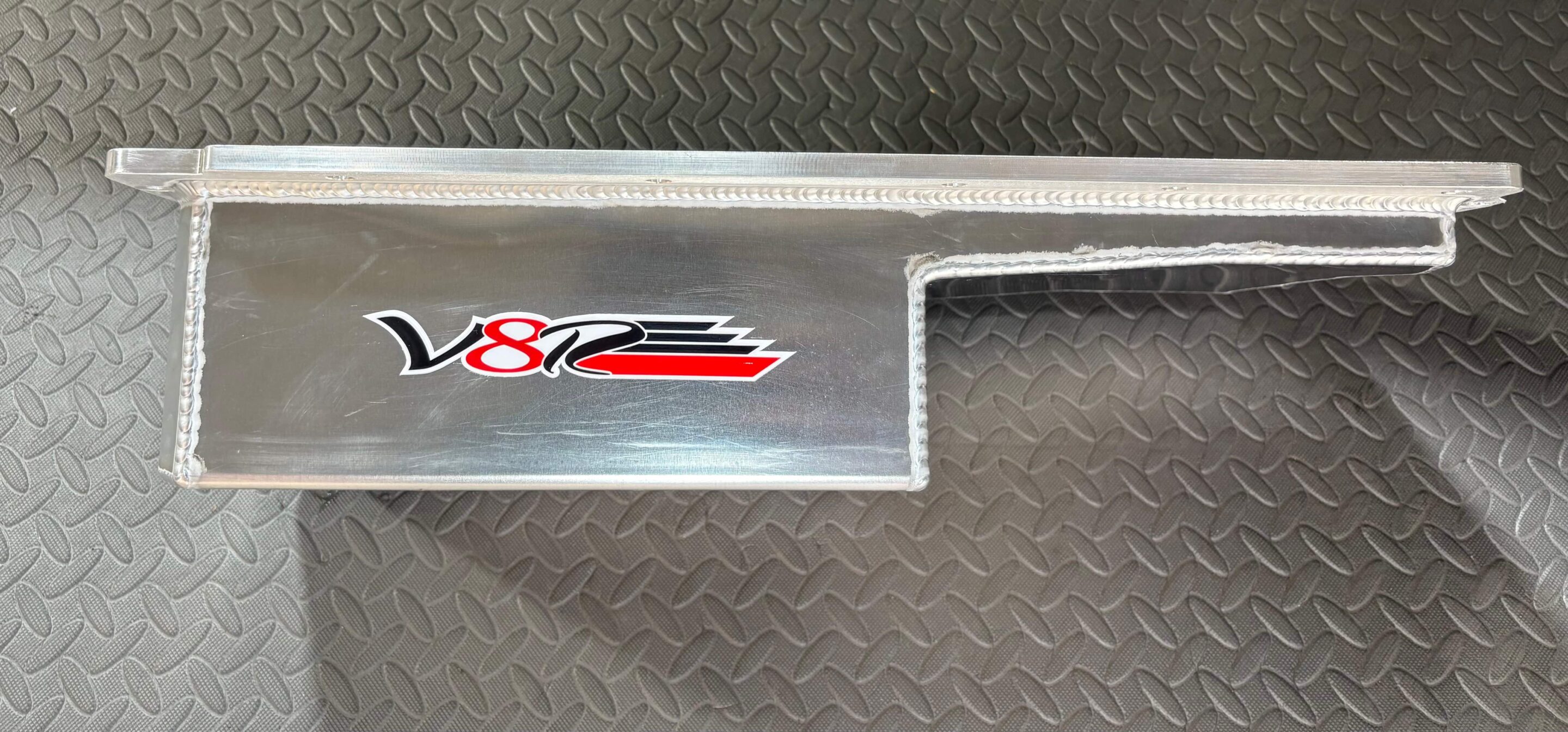

"So beautiful it's a shame to put it under the car!" We designed our pan to work with the tight spacing of the LSx. Rigorously tested on track and the street. Six and a half quart sump with four door diamond designed road race baffle to offer superior oil under high G load conditions. Extra thick 3/8" pan rails for added rigidity. The pan is a full aluminum construction welded inside and out then heat treated for strength. Provisions for external oil cooler can be adapted through side exits. Pan includes pick up tube and mounting hardware. Updated design to clear late model crank position sensors. Pan rails are now mill finished to ensure a non leak sealing surface. Pan uses filter PF48.
Additional information
| Weight | 20 lbs |
|---|---|
| Dimensions | 12 × 24 × 10 in |
6 reviews for Screw on Filter
Q & A
Hi Tim,
We wanted to let you know that you can reach out to us at sales@v8roadsters.com to request a quote for the parts you require. Our team will be more than happy to assist you with your specific needs and provide you with the necessary information and pricing details.
Thank you for choosing V8 Roadsters.
Hi Damen - The standard f-body dipstick is used and install into the block.
Hi Donald - the pan holds roughly 6.5qts.
Hi Stephen - no, the LS7 stroke will not clear.
Hi Cody - no, this pan will interfere at the forward section of the pan.
Anonymous –
Great quality and really simple
This pan with the screw on filter is worth the extra money. The welds are really good and the screw on filter makes it 100 times easier to change the oil and saves a lot of room. It also has the doors on the inside of the pan to keep oil near the pickup and prevents oil from sloshing around under acceleration or cornering. It blew my expectations out of the water.
Benjamin Sarver –
Perfect!
After first trying to make a Holley pan work I changed course and sprung for this high quality Moroso pan. The baffling is great and there is now plenty of clearance. Definitely the way to go for an LS swapped Miata!
Damen –
Great quality
Very clean welds and very good clearance in the vehicle
Alain Blanchet –
Screw on Filter
Really satisfied as much for the room as the delivery time. I recommend home without hesitation.
Zach Huffman –
ls1 swap 99 miata
Perfect fit and built right
Mason Messina –
Great quality and really simple
This pan with the screw on filter is worth the extra money. The welds are really good and the screw on filter makes it 100 times easier to change the oil and saves a lot of room. It also has the doors on the inside of the pan to keep oil near the pickup and prevents oil from sloshing around under acceleration or cornering. It blew my expectations out of the water.
