RX8 LSx & LFX Clutch Kits

RX8 LSx & LFX Clutch Kits

(2 customer reviews)

$269.00 – $289.00

-


Affirm payment terms & disclosures

> See more product details

Frequently Bought Together

NC & RX8 Power Steering Conversion

Clear

NC/RX8 GM throttle pedal adapter

Explore the CNC-machined throttle pedal adapter for NC Miata, enhancing RX8 GM pedal conversion and driving performance.

Bundled product placeholder image

RX8 Subframe

Temporarily unavailable

SKU: N/A Categories: , , , , , , Brand:
(2 customer reviews)

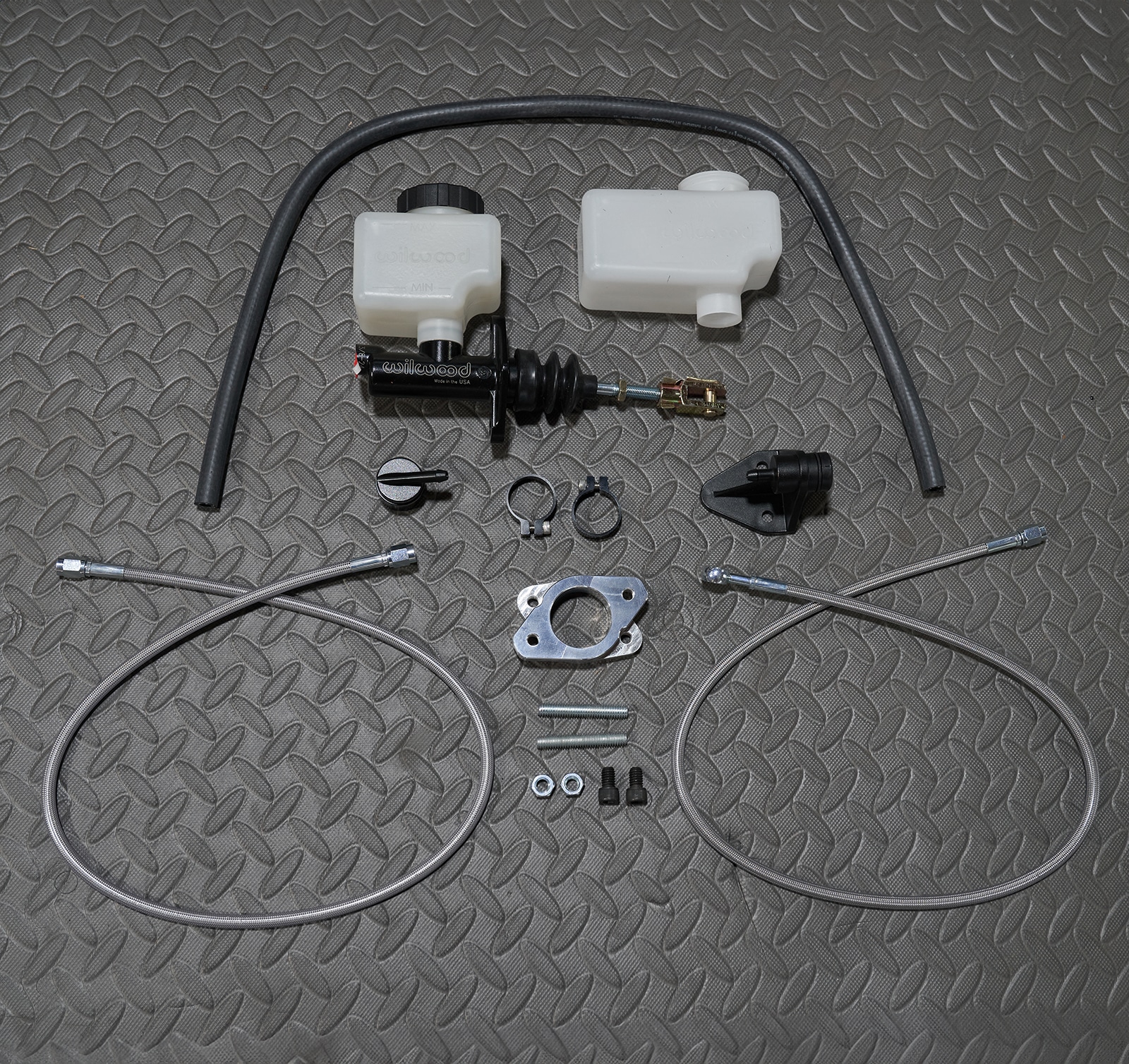

The RX8 requires a unique clutch system as the firewall is not square. Our clutch kit includes a custom 6061-T6 aluminum adapter bracket. Wilwood pro series shorty master cylinder, stainless DOT approved supply and bleed lines with the correct slave fitting. The fluid is drawn the master directly from the OE reservoir.

***Products may vary from image***

Additional information

Weight 5 lbs
Dimensions 2 × 10 × 12 in

2 reviews for RX8 LSx & LFX Clutch Kits

  1. Anonymous –

    Great experience
    Ordered this for my RX8 LS3 swap W/ T56 Magnum, I am not using the V8Roadsters kit but rather a custom set of mounts. When I got the package there was no adapter for the firewall; I contacted customer support and the NEXT DAY!!! I got a package with this piece. (And I am located in CANADA) GREAT CUSTOMER SUPPORT!! THANK YOU
    **This fit perfectly for the Short LS1 Style slave cylinder. Easy to bleed and looks nice.

  2. MAXIM PEVZNER –

    Great experience
    Ordered this for my RX8 LS3 swap W/ T56 Magnum, I am not using the V8Roadsters kit but rather a custom set of mounts. When I got the package there was no adapter for the firewall; I contacted customer support and the NEXT DAY!!! I got a package with this piece. (And I am located in CANADA) GREAT CUSTOMER SUPPORT!! THANK YOU
    **This fit perfectly for the Short LS1 Style slave cylinder. Easy to bleed and looks nice.

Add a review

Your email address will not be published. Required fields are marked *

Q & A

Ask a question
You must be logged in to ask a question Log In
Does this fit a tr6060? The fittings on the release bearings are not the same in t56 and tr6060 Steini Grimurgodi asked on May 24, 2025

Hi Steini - The standard line does not, but we do have a 6060 compatible line. If looking for this option please leave 6060 in the order notes.

Best regards,

 V8 Roadsters answered on May 27, 2025
(0) (0)
Add an answer
You must be logged in to answer a question Log In
Hi your rx8 clutch kit does it come with the oil holder? Can yiu run the power steering of it as well. I believe the rx8 one does both clutch and steering? George Veleski asked on December 31, 2020

Hi George - the RX8 clutch kit uses the fluid from the joint reservoir for the brakes and clutch. It can be run on a independent reservoir if desired, but can not be used with the power steering system.

 V8 Roadsters answered on January 4, 2021
(0) (0)
Add an answer
You must be logged in to answer a question Log In
Different MC, same question 🙂 what's the bore of the MC in the LSx clutch kit? I assume it's bigger than the one in the LFX kit (13/16") and that's why this kit costs more? Thanks for any information. BTW, I'm not swapping engines. I'm just trying to replace the stock clutch MC with a slightly larger one, to shorten the clutch pedal travel. The stock engagement point is on the &*#%ing floor. Reid Reid Kneeland asked on July 8, 2020

Hi Reid - both kits use a 13/16" master. The price difference is between the supplied lines and fittings. The LSx uses an additional line with fittings.

 V8 Roadsters answered on July 10, 2020
(0) (0)
Add an answer
You must be logged in to answer a question Log In
