V8R NA & NB Miata Front Upper Control Arms

$385.00$575.00

-

> See more product details

Frequently Bought Together

3/4 Uni-Ball Replacements for V8R Pro Series Front / Rear Lower Arms

Energy Suspension Control Arm Bushings set

SKU: N/A Categories: , Brand:

We offer three styles of control arms. Each option is sold as a set and is compatible with MX5 NA and NB subframes and spindles. Control arms are usually in stock and ready to ship. At times control arms may need to built and lead times vary. Arms are Powder coated in silver vain gray. If you'd like to confirm stock before ordering, email us at sales@v8roadsters.com. For instructions on new ball joint installation, adjustments check our V8R Ball Joint Guide.

V8R Pro Series Front Uppers

Pro Series front upper arms are built from DOM tubing using our lash adjustable ball joints pressed into thick laser-cut plates. 3/4" PTFE uni-ball mounting points to eliminate bushing compliance and offer maintenance-free service. Stainless steel misalignment spacers mate to the subframe mounting points an increased spring pocket area will work with most spring sizes. Price is per pair.

V8R Elite Series Front Uppers

NA and NB Miata direct replacement for factory front upper arms. Built from DOM tubing using our lash adjustable ball joints pressed into thick laser-cut plates. Proprietary 95A graphite impregnated polyurethane mounting points eliminate bushing compliance in suspension movement with CNC zinc coated sleeves. The increased spring pocket area will work with most spring sizes.

V8R X-Lite Control Arms

The revolution in Miata suspension is here. Introducing X-lite series billet control arms. Hundreds of hours of R&D and testing have resulted in a lightweight billet 6061-T6 arm 2.5 times stronger than OEM. The integrated outer ball joint allows for custom pins to adjust roll centers. Built-in "on the fly" camber adjustments can be made through the upper arm via shims. Superior to both sheet metal and tubular arms in strength, adjustment, and weight. Infinite adjustment is available through 5/8″ heim joints and shims with mounting provide via stainless misalignment spacers. All bearing mounting points eliminate bushing compliance in suspension movement.

Replacement Parts

Additional information

Weight 13 lbs
Dimensions 14 × 4 × 14 in

Customer Reviews

Based on 14 reviews
86%
(12)
14%
(2)
0%
(0)
0%
(0)
0%
(0)
T
Tom Quaranto
X-lite front arms

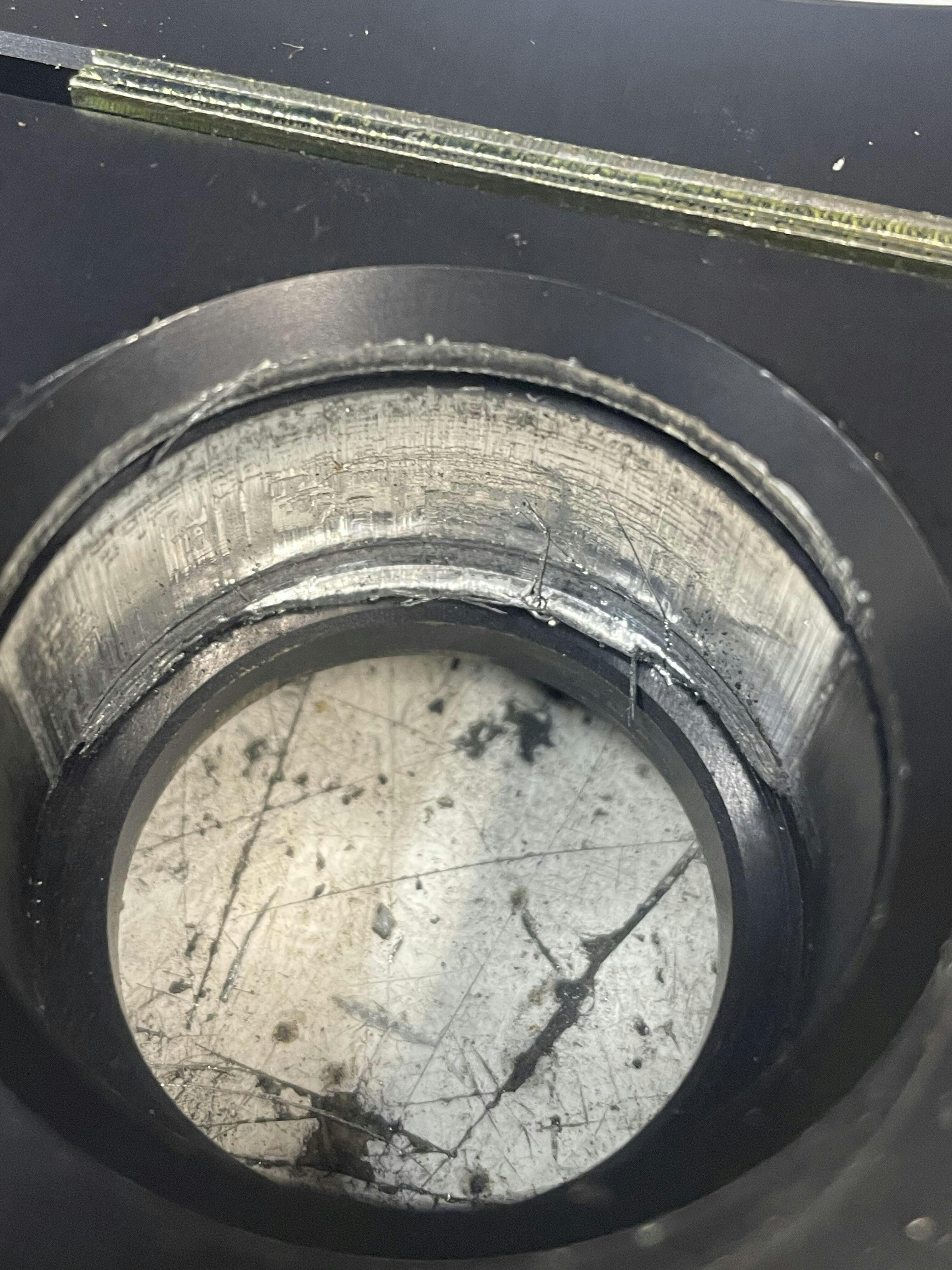

I really wanted to give these 5 stars, the arms are beautifully made and well thought out. However an assembly issue causing the spherical bearing to not be fully seated caused my rating. I had to press the bearing out a rebore the seat to allow the bearing to fully seat in the bore and get the snap ring to fit into its groove.

I really like the ability to adjust the camber with shims at the track. This greatly simplifies chassis tuning. The machining is first class and the anodized finish is a plus.

R
Robert Shinn
Excellent quality.

A little tough to install, but well worth the effort.

T
Talon Beer-Flanigin
Didn’t work for me. Customer service very professional.

I had issues on fitment with two set of control arms I got from them. Not going to bash them on here but I’d definitely give your parts a look over before install(with any parts of course) I kept some things I could use and sent the rest back (waiting on second refund) anyway, defects happen mistakes happen, and they’ve been making an effort to get me taken care of even though I’ve been more than unprofessional, unpleasant, and downright disrespectful to their customer service team.

A
Aaron Provido
Great control arms

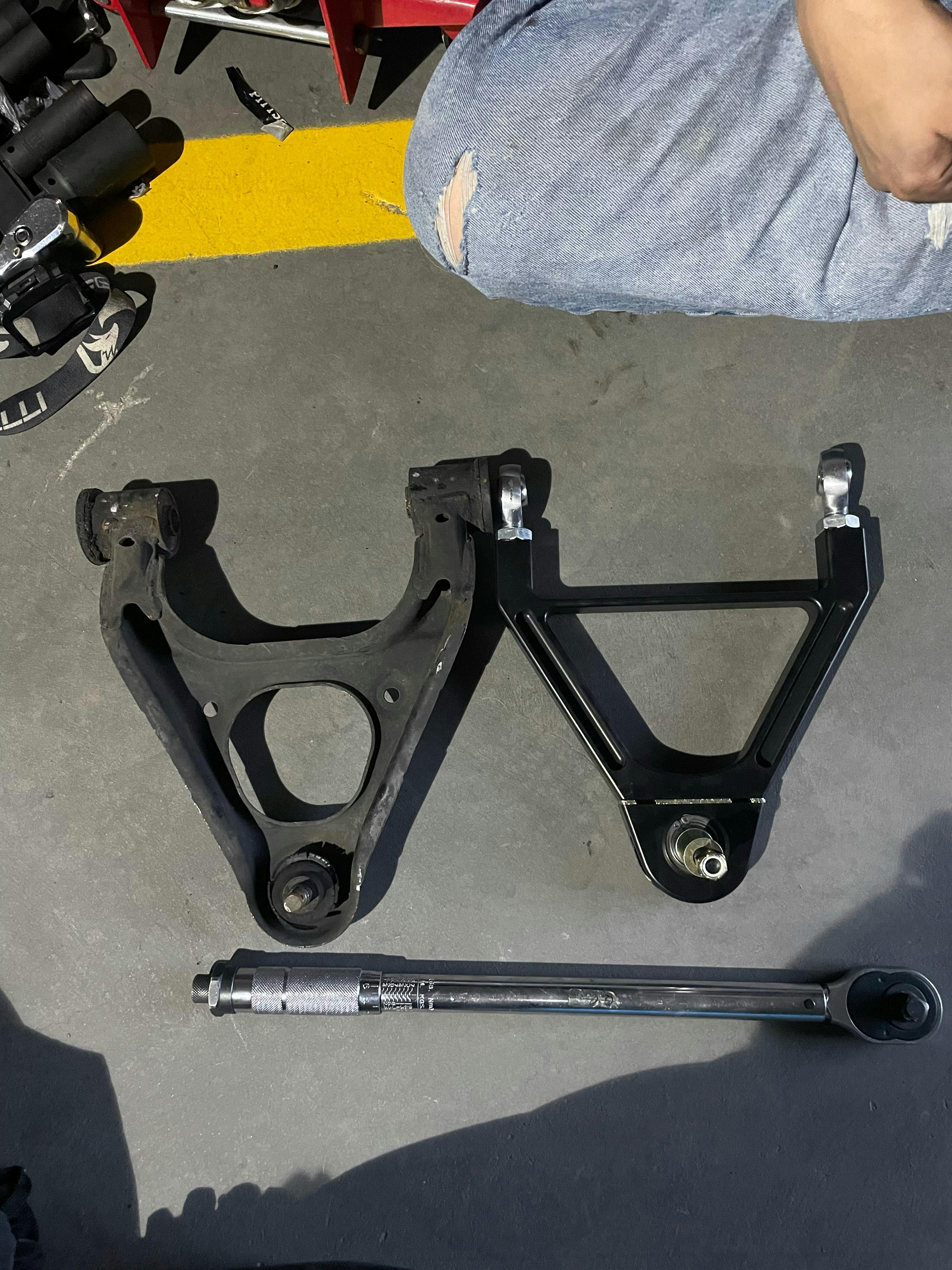

So I ordered some control arms from rockauto and they did not fit my 93 NA. It kept hitting the coilovers. I decided to just use this opportunity as an excuse to upgrade to these control arms instead. I've only used them for a week or two but they've been phenomenal. I'm a big fan of the grease fitting so i can just add more grease and hopefully prolong the life of the ball joint. I definitely recommend these control arms.

H
Harry Doherr
Brilliant

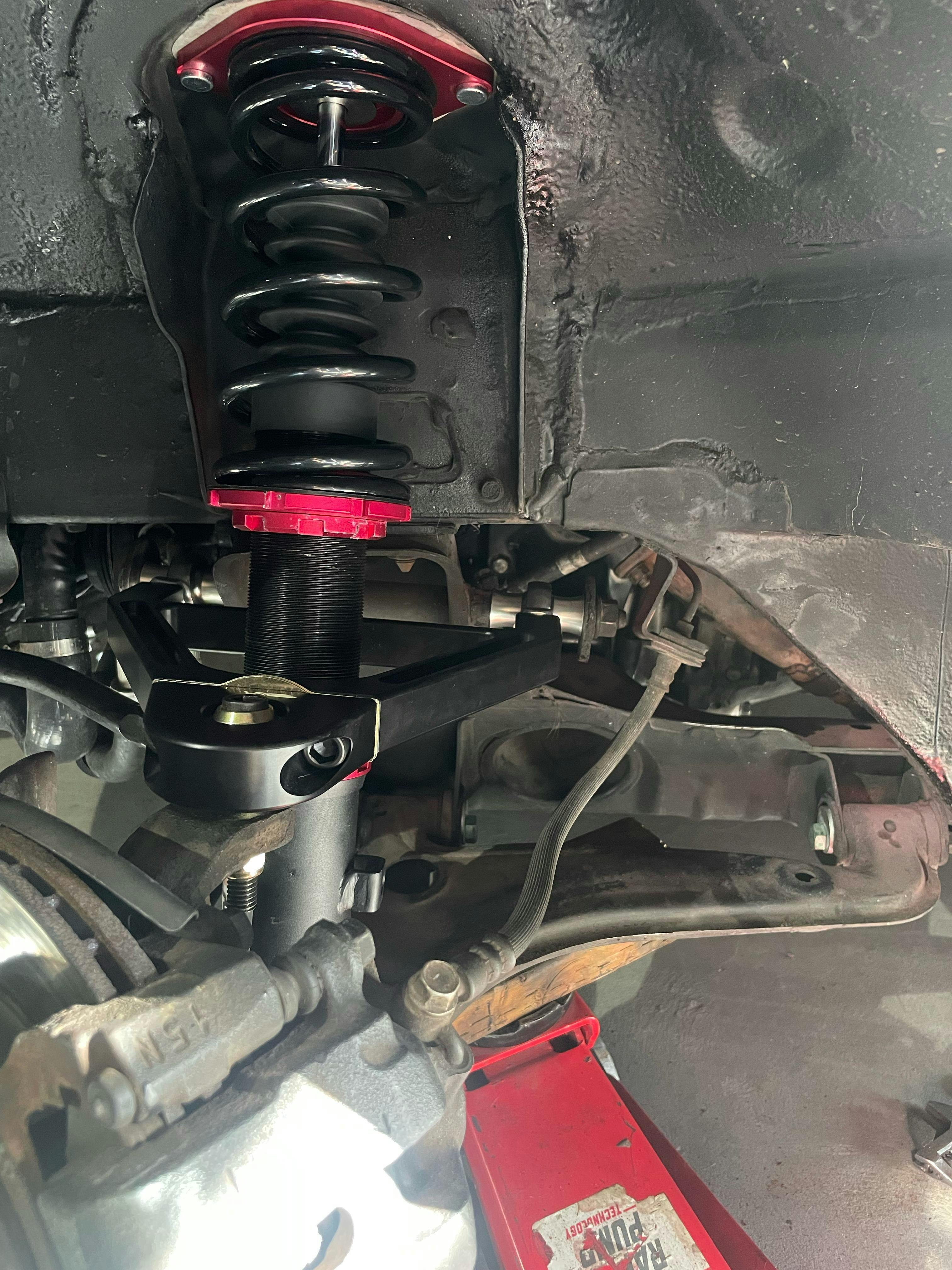

Lots of clearance over coilovers and look very tidy. Absolute quality part
